High airflow power
170 aW 29 kPa
The electronically controlled brushless motor from the Japanese company NIDEC creates an air flow with a power of 170 aW and a vacuum of 29 kPa.
Motor speed - 125,000 rpm
6-stage filtration system
The filter system traps 99.996% of particles up to 0.3 microns in size.
1. Cyclone in the dustbin for large size objects.
2. Metal mesh for coarse dust.
3. Multi-cyclone system for the separation of fine dust.
4. HEPA10 filter for micron-size dust fractions.
5. Optional foam filter.
6. HEPA12 output filter for submicron fractions.
Universal nozzle with two rollers

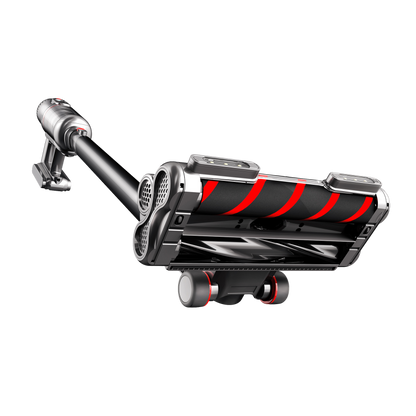

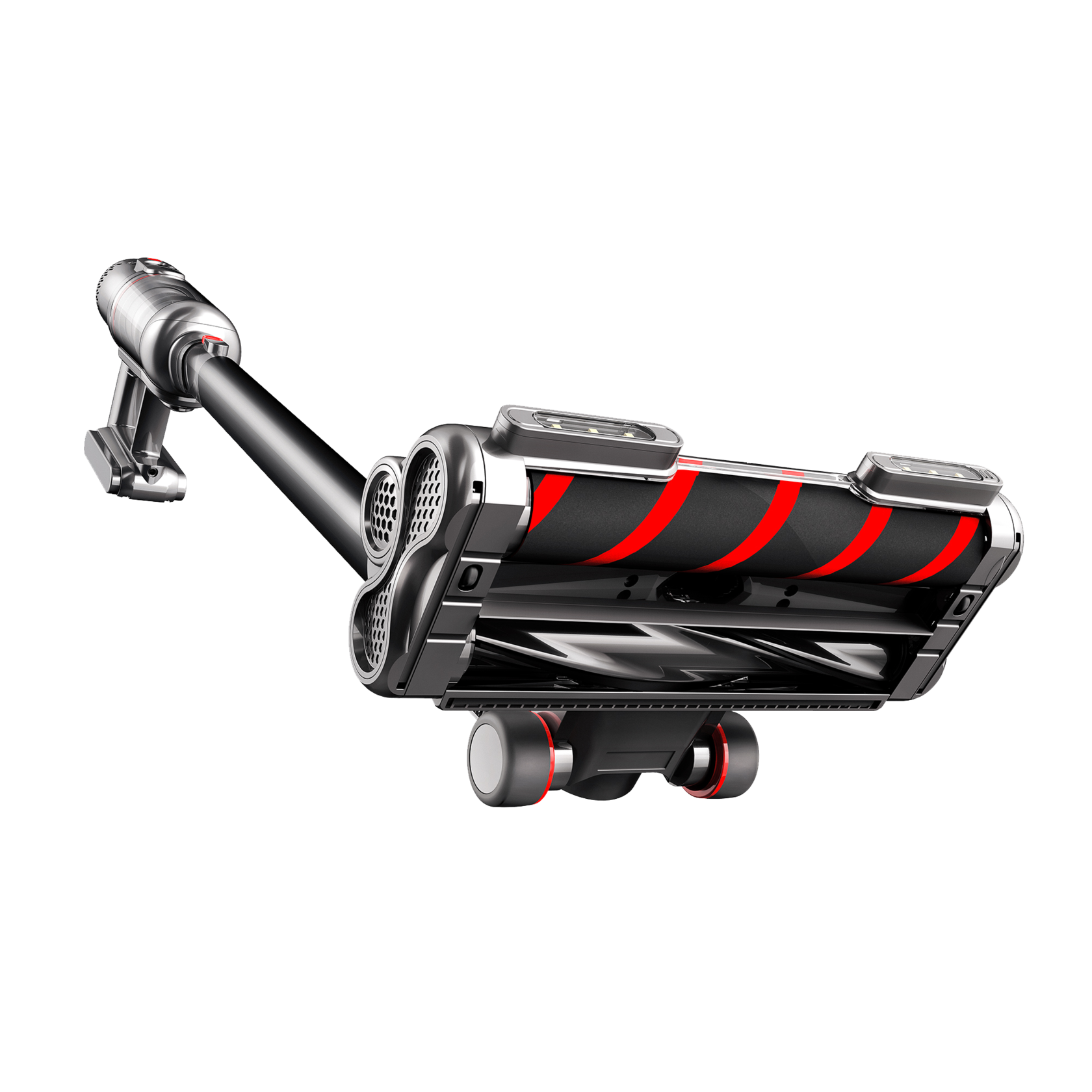

Patented * motorized nozzle with two rotating brushes:
1. Lint brush - perfectly collects larger objects from the floor.
2. Bristle brush - effectively removes fur and hair from carpets, collects smaller objects. The nozzle equally effectively copes with any type of dirt on any types of floors.
* - Appearance patent No. 201,930,631,009. 9, invention patent No. 201,910,527,816. 2, utility patent No. 201,929,916,382. 0.
Power management system
The ATVEL processor controls the motor power, charge consumption, brush rotation frequency, and the state of the vacuum system.
This allows to optimize the use of power, ensure maximum operating time, and protect the device from breakdowns.
In the event of a blockage or loss of system hermetic seal, the processor will stop the motor.
Optimal modes
Three modes are optimized for different tasks:
Eco- suitable for smooth floors with a low level of required cleaning. Operation time - 60 min
Super- maximum power mode for heavy cleaning.Operating time - 12 minutes.
Auto— automatic power control mode.
The processor selects the optimal power depending on the current load and ensures optimal power consumption.
OLED display
The device's convenient OLED display displays:
- Battery charge level.
- Selected mode.
- Messages about dustbin available volume.
- Reports blockages.
- Dustbin absence messages.
LED- illumination for dark places
The universal motorized nozzle has 6 LEDs for more comfortable cleaning in places with poor lighting.
The brush head for upholstered furniture removes 99 % of dirt
The patented * upholstered furniture cleaning nozzle is designed to remove hair, fur, dust mites, and allergens.
* The appearance patent # 201830133667.8, the utility patent # 201820482587.8.
Attachments for cleaning various types of surfaces
The delivery package includes attachments for cleaning home and kitchen furniture, window sills and other surfaces.
Two charging bases
The vacuum cleaner is equipped with two charging bases:

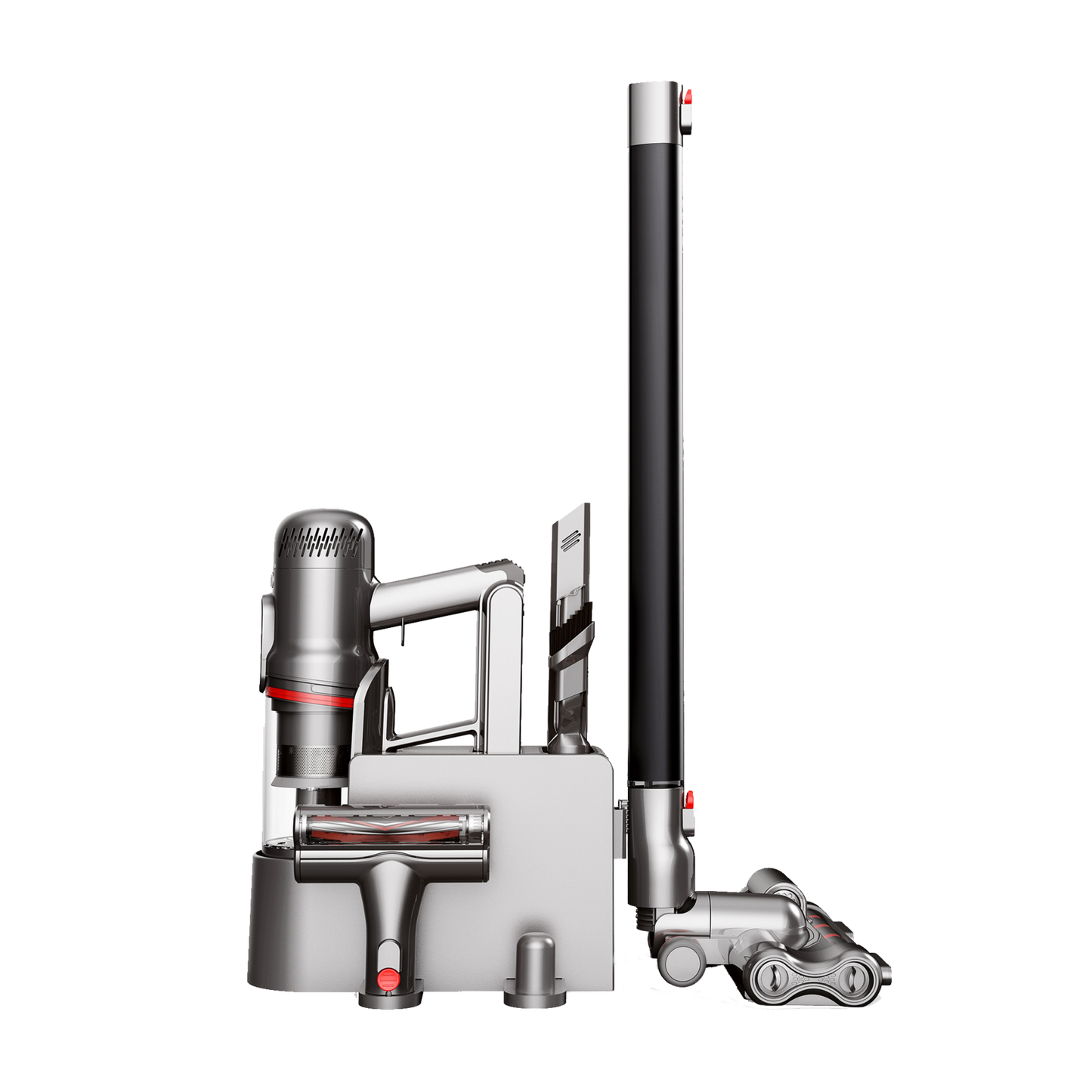

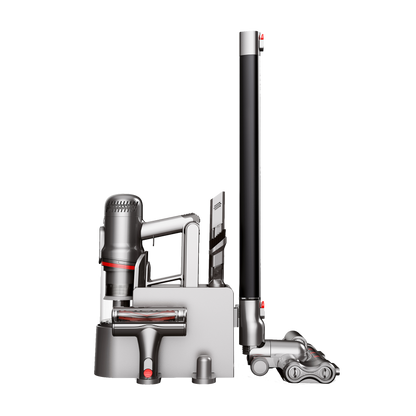

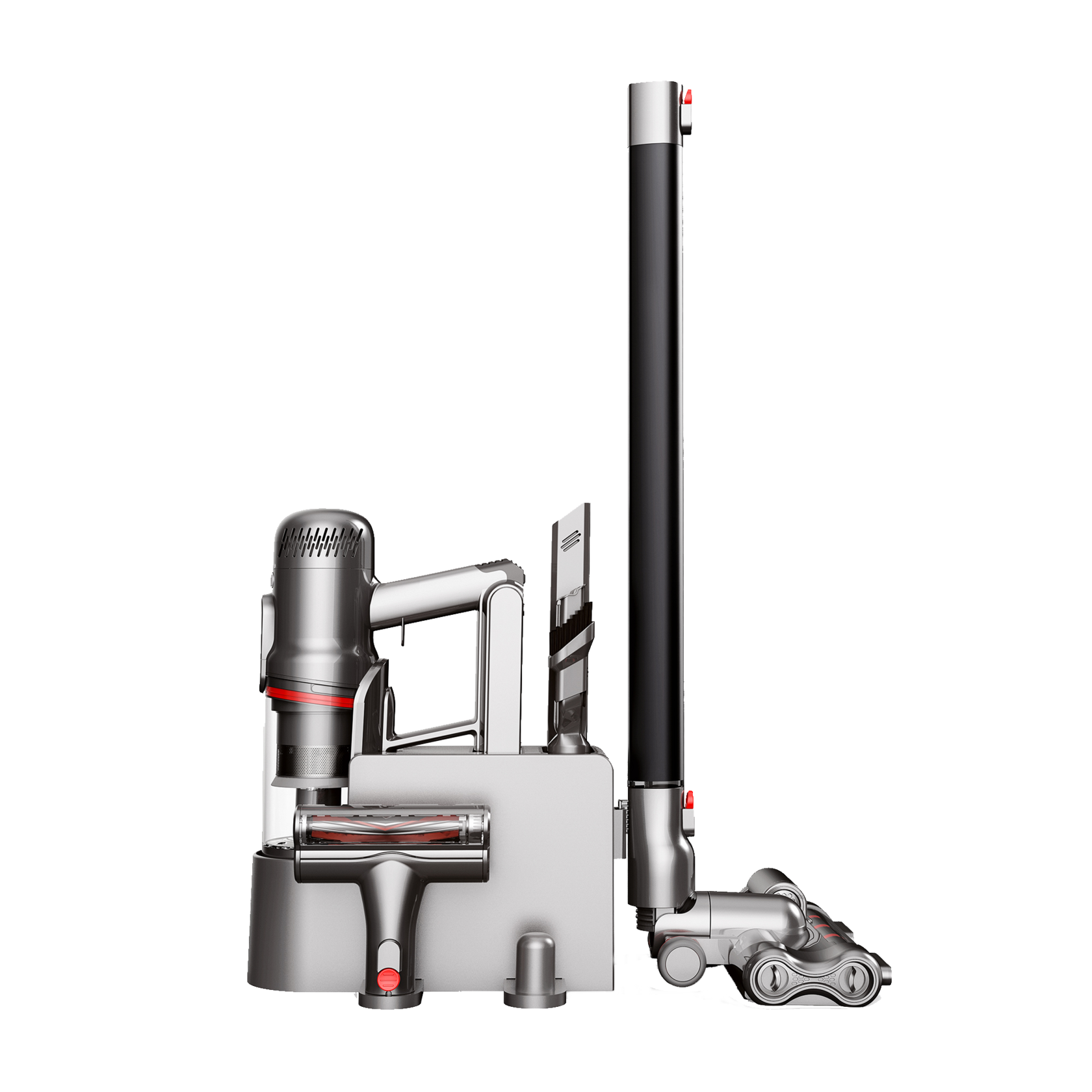

Wall-mounted, designed to store the vacuum cleaner in a completely ready-to-use state. Floor-mounted - patented* ergonomic station with mounts for all accessories of the set.
* Appearance patent # 201930341020.9, invention patent # 201910829193.4, pending utility patent # 201921454950.6.
Parts
1. Extension tube
2. Motorized nozzle with two brushes
3. Crevice nozzle
4. Universal nozzle for furniture
5. Motorized nozzle for upholstered furniture
6. Telescopic nozzle
7. Cordless vacuum cleaner
8. Floor-mounted charging base
9. Power adapter
10. Wall-mounted charging base
| Characteristics | Value |
|---|---|
| Power, W | 535 |
| Airflow power, aW | 170 |
| Vacuum cleaner weight, kg | 1,63 |
| Motor type | Brushless from NIDEC |
| Dimensions of the vacuum cleaner assembly (+ tube + main nozzle), mm | 1248 х 300 х 225 |
| Operating time in ECO mode, min. | 60 |
| Operating time Super mode, min. | 12 |
| The dustbin capacity, liters | 0,5 |
| Charging time, h | 3 |
| Adapter input voltage, V | 100-240 |
| Adapter output voltage, V | 35 |
| Gross weight, kg | 7,6 |
| The package size, mm | 692х302х195 |
| Filter class | Hepa 10, 12 |
| Air filtration | 6 stages |
